Digital Sublimation Printing Fabric

Digital Sublimation Printing Fabric

1. The bottom wheel of the printing machine. When cleaning the table glue on the table, avoid the table glue sticking to the bottom wheel. If necessary, wipe off the glue with a dry cloth, otherwise it will directly affect the accuracy of printing. 2. The air source processor on the digital...
Send Inquiry
Product Introduction

Digital sublimation printed fabric is a special printing medium that can transfer high-quality full-color images onto textiles through a heat transfer process. This technology has revolutionized the design industry by providing a fast and cost-effective way to produce unique digitally designed textiles for a variety of applications.



Specifications vary by manufacturer and intended use. However, some general parameters include: fiber composition, fabric weight, width and length, color fastness and printability. These fabrics can be made from synthetic fibers like polyester or blended with natural fibers like cotton or linen.



The most common uses are in the production of clothing and home furnishings such as upholstery and bedding. It is also used to create promotional materials such as banners, flags and trade show displays.



In terms of technical specifications, the transfer process requires specialized printers, inks and heating elements. The heat activates the ink, turning it into a gas that penetrates the fibers of the fabric, resulting in a permanent image transfer.



Always read the manufacturer's directions for use carefully before use. Additionally, certifications and test reports ensure products meet or exceed safety and quality standards.



The processing equipment required for production includes dye-sublimation printers, heat presses, and computer design software.

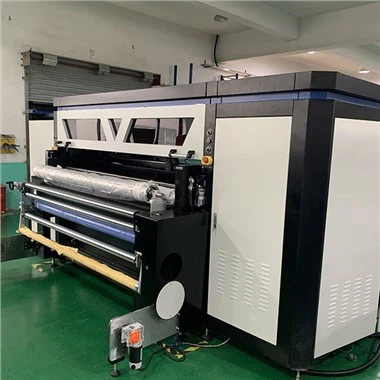

Product mode

YSR1816

Print head

8pcs Ricoh Gen6 print head

Fabric conveyance mode

Adhesive belt with cleaning and heating system

Maximum medium width

1850mm

Production speed

Gen5 E

2 pass:330m2/h

Print software

Neostampa / Texprint

Ink Type

reactive , disperse or acid ink,pigment(8 color)

Power voltage

380V,3L+N+G(with independent reliable effective earth wire)

Power consumption

printer 15kw, electric dyer 20kw(steam dryer 4kw)

Workshop condition

Temperature:20-30℃,humidity:55-65%

Measurement(with wooden case)

Printer

4700*2200*1950mm (L* W* H)

Dryer

2300*2200*1950mm (L* W* H)

Weight

G.W:4800kg N.W.:4200KG
